6U - VME Crates

 Low Noise!!!

{short description of image} {short description of image}

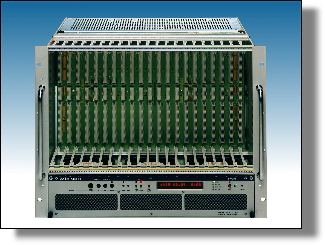

8 U height VME 5020 crate for 6Ux160mm cards

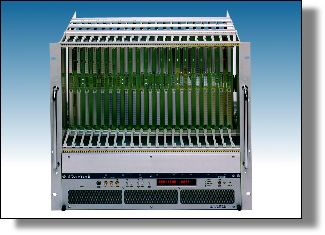

with power supply at rear in top position		 9 U height VME 5023 crate for 6Ux160mm cards
with power supply at rear in bottom position

Modular designed powered VME crates in excellent and proofed W-IE-NE-R quality, conforming VITA and DESY or CERN specifications, equipeed with computer-controlled lowest-noise power supplies

19" x 8/9U VME bins:

  • 8U or 9U bin for 6U VME cards, 21 slots, 2U space for fan tray
  • various backplanes possible: standard J1/J2, CERN-V430 J1/J2/Jaux, VME 64
  • optional with plenum chamber and dust filter
  • VME 5000 series (DESY spec.) conforming all safety rules, CE
  • VME 430 series mechanics and wiring completely CERN compatible
  • customer based design possible

Intelligent or economic Fan Tray units (UEL 4020 Series):

  • simplified fan tray unit with mains switch only, 3 DC fans (economy / EC)
  • intelligent LX fan tray unit with 3 DC-fans (variable fan speed), 4 status LEDīs and alpha-numeric display / diagnostic system, optional interface for crate remote control

Various low-noise Power Supplies (UEP 5020 and UEP 5021 Series):

  • ultra low-noise power supplies designed in special W-IE-NE-R VHF switching technology
  • modular set-up, cavity arrangement
  • power output 1500VA or up to 3500VA (double unit)
  • standard power supplies (other configuration on request):

Power Supply Power Outputs Backplane
+5V +/-12V -2V -5.2V +/-15V
UEP xxx / 11 100A 6A / 6A - - - standard J1/J2
UEP xxx / 12 100A 10A / 10A - - - standard J1/J2
UEP xxx / 13 200A 6A / 6A - - - standard J1/J2
UEP xxx / 14 200A 10A / 10A - - - standard J1/J2
UEP xxx / 30 100A 6A / 6A 50A 100A - V430 J1/J2/Jaux
UEP xxx / 31 100A 10A / 10A 50A 100A - V430 J1/J2/Jaux
UEP xxx / 32 100A 6A / 6A 50A 100A 6A / 6A V430 J1/J2/Jaux
UEP xxx / 33 100A 10A / 10A 50A 100A 6A / 6A V430 J1/J2/Jaux
UEP xxx / 34 100A 10A / 10A 50A 100A 10A / 10A V430 J1/J2/Jaux
UEP xxx / 40 200A 6A / 6A 50A 100A - V430 J1/J2/Jaux
UEP xxx / 41 200A 10A / 10A 50A 100A - V430 J1/J2/Jaux

(xxx = 5020 or 429 according to the crate type)
