Exception Handling

Most of the SmartSockets functions return FALSE on failure, and TRUE on success. The corresponding C++ member functions throw exceptions on failure. Each class in the C++ library has an associated exception class.

A block written in C looks similar to this:

if (!TipcMsgAppendStr(msg, "voltage")) {
    TutOut("Could not append first field.\n");
    return T_EXIT_FAILURE;
}

In C++, this same code looks similar to this:

try {
  msg << "voltage";
}
catch (TipcMsgException msge) {
  TutOut("Could not append first field.\n");
  return T_EXIT_FAILURE;
}

In the next example, TipcMsg::getDest calls the C function TipcMsgGetDest. If the C API returns FALSE, then a TipcMsgException exception is thrown to the user:

/* =============================================================== */
/*..TipcMsg::dest -- get the destination property of a message */

const char * TipcMsg::getDest() const throw (TipcMsgException)
{
  char * dest_return = (char *)"";  // initialize variable

  if (!TipcMsgGetDest(_msg, &dest_return))
    throw TipcMsgException();

  return const_cast<const char*> (dest_return);
}

Use the try/catch block to handle unexpected behavior from the member function:

try {
  TipcMsg msg;
  char* the_dest = (char *)msg.getDest();
  }
catch (TipcMsgException msge) {
  // handle the error
  }

Exception Class Hierarchy

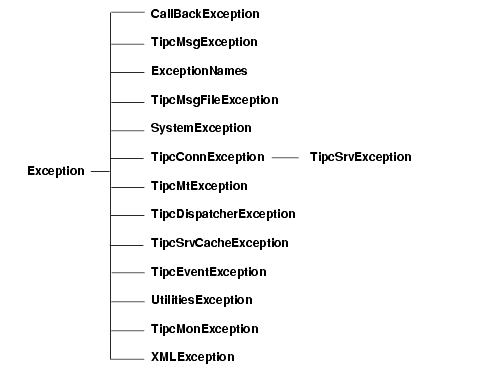

Each main class in the C++ library has an associated Exception class. The exception hierarchy follows the main classes in the class hierarchy. For example, exceptions generated from methods in the TipcMt class throw TipcMtException exceptions. Figure 1 shows the Exception class hierarchy.

Exception Class Features

Each Exception class includes these member functions, which retrieve information about errors that are generated:

For more information on all error codes, see the TIBCO SmartSockets API Quick Reference.
